LinkScript

Introduction

A LinkScript is a named, reusable Groovy script that can be chained with other LinkScripts to build a directed graph of small scripts. Instead of writing one large script, you split your logic into individual LinkScripts and connect them through arcs, where the output of one script feeds the next. This makes complex scripting logic modular, composable, and testable.

LinkScripts are managed from App > LinkScript (the menu is visible when the Studio application is installed).

LinkScript List

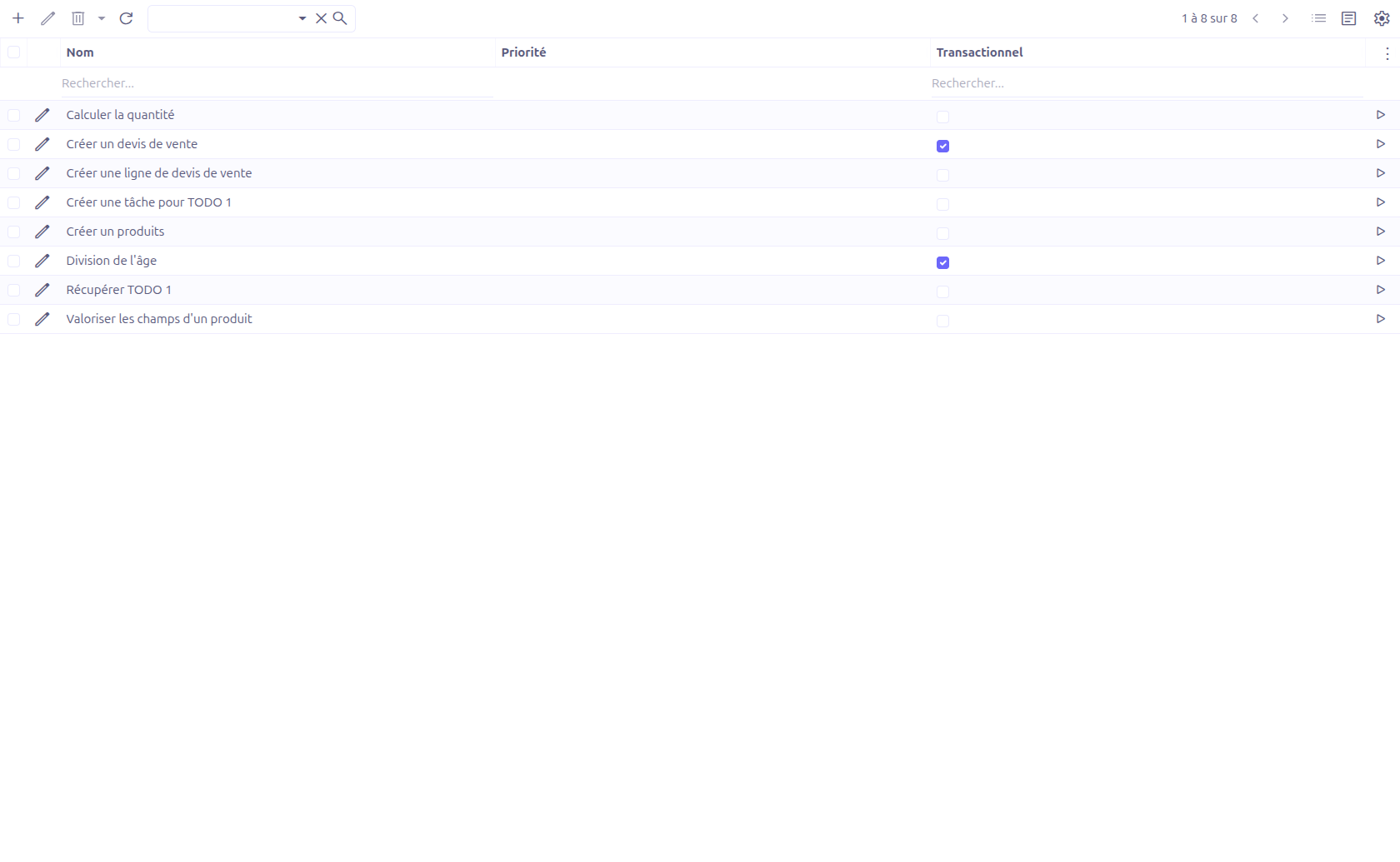

LinkScript grid view

The grid view lists all existing LinkScripts. Each row provides a Test button (play icon) that saves the record and opens the test popup directly.

Creating a LinkScript

Navigate to App > LinkScript and click New.

LinkScript form

Form Fields

Field Required Description

Name

Yes

Unique name identifying the LinkScript. This name is used to call the script (from another LinkScript arc, from the run() built-in function, or from the LinkScriptService).

Transactional

No

When enabled (BooleanSwitch), the LinkScript runs inside a database transaction. Defaults to false.

Description

No

Free-text description of the LinkScript (HTML editor).

Body

Yes

The Groovy script executed by this LinkScript. Edited in a code editor (Java/Groovy syntax highlighting).

Body

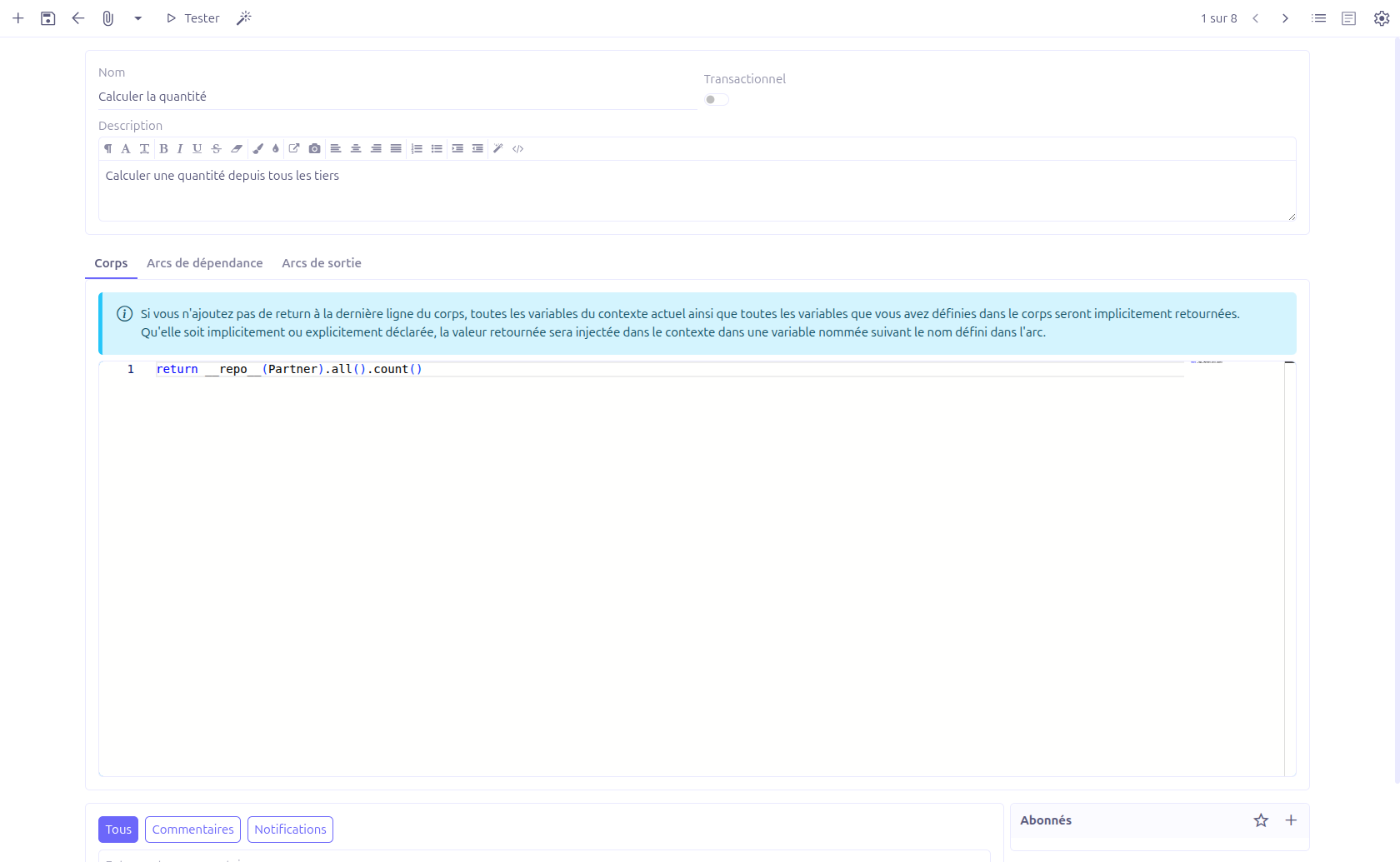

LinkScript body editor

The Body tab holds the Groovy script.

If you do not add an explicit return on the last line of the body, then all variables of the current context plus all variables you defined in the body are implicitly returned. Whether returned implicitly or explicitly, the value is injected into the context under the name defined on the arc that called this LinkScript.

Arcs

A LinkScript is connected to other LinkScripts through arcs (LinkScriptArc). An arc is a directed link from one LinkScript to another, optionally guarded by a condition. There are two kinds of arcs on a LinkScript form:

  • Dependency arcs: LinkScripts that must run before this one. Their results are collected and exposed to the body through a variables map (keyed by the arc name).

  • Output arcs: LinkScripts that run after this one, receiving this LinkScript’s result injected into their context.

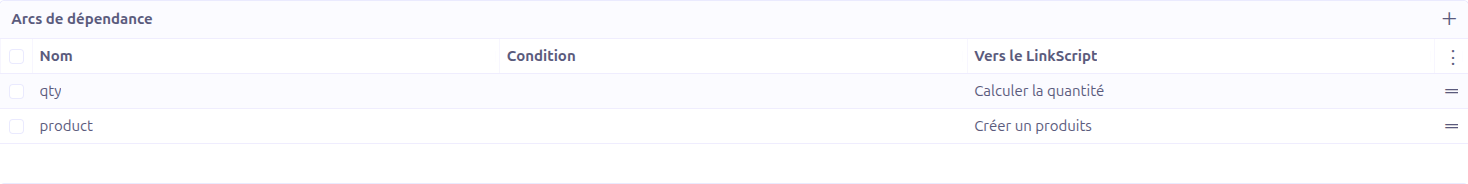

LinkScript arcs

Each arc has the following fields:

Field Description

Sequence

Read-only ordering value. Arcs are evaluated in ascending sequence order.

Name

The name under which the called LinkScript’s result is injected into the context. When left blank, the result is stored under the default key result.

Condition

An optional Groovy condition. The arc (and therefore the linked LinkScript) is only followed when the condition evaluates to true. An empty condition is always followed.

To LinkScript

The target LinkScript reached through this arc (required).

Execution Model

When a LinkScript is run, the engine processes it as a graph traversal:

  1. Each dependency arc (sorted by sequence) whose condition passes is executed first. The result of each dependency is added to a variables map under the arc’s name (or result when unnamed), and is also merged into the calling context.

  2. The variables map is bound into the context, and the LinkScript body is evaluated.

  3. Each output arc (sorted by sequence) whose condition passes is then executed, receiving the body’s result injected into its context under the arc’s name.

Recursion depth is bounded: when the traversal exceeds the configured maximum recursion (AppSettingsStudioService.getMaximumRecursion()), execution stops with a "Too many recursions." error.

Built-in Bindings and Functions

Inside a LinkScript body, the following helpers are available in addition to the context variables:

Binding / Function Description

service

The LinkScriptService, allowing programmatic execution of other LinkScripts.

log

An SLF4J Logger for logging from the script.

echo(…​)

Concatenates its arguments into a single space-separated string.

inject(ServiceClass)

Returns an injected instance of the given service class (equivalent to Beans.get(…​)).

run(name, arguments)

Runs another LinkScript by name with the given argument map and returns its final result.

request(url)

Builds an HTTP request to the given URL (fluent helper backed by the JDK HTTP client) for calling external services.

Testing a LinkScript

The Test button (available on the grid and on the form toolbar) saves the record and opens a test popup.

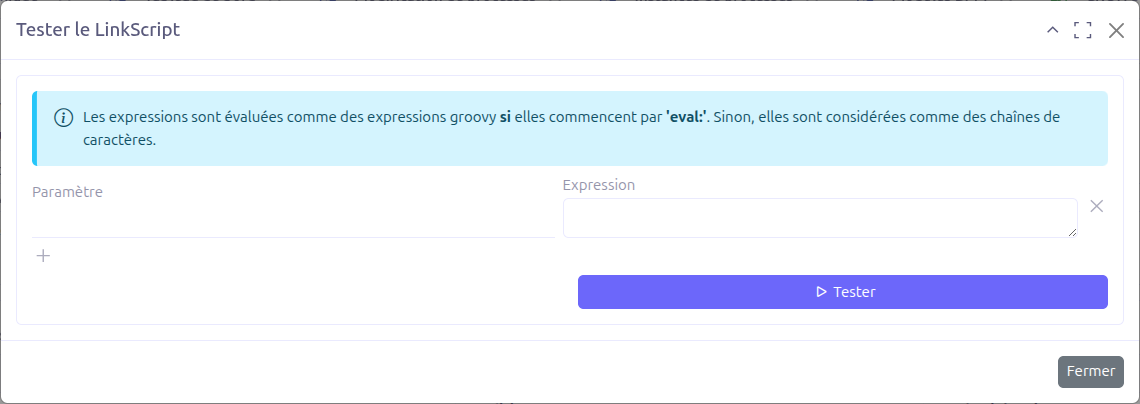

LinkScript test popup

In the test popup you provide the script’s input Bindings:

Field Description

Parameter

The binding name (variable available in the body).

Expression

The value bound to the parameter. Expressions are evaluated as Groovy if they start with eval:; otherwise the literal string is used as-is.

When you open the popup, the parameters are pre-filled from the dynamic variables detected in the body. Click Test to run the LinkScript with the provided bindings; the result is displayed as an information message.

Technical Details

Entities

LinkScripts are stored in the LinkScript entity (com.axelor.studio.db.LinkScript):

Field Type Description

name

String (required, unique)

LinkScript name used to reference and call the script

transactional

Boolean (default: false)

Whether the script runs inside a transaction

description

Large String

Free-text description

body

Large String (required)

The Groovy script body

outputArcs

O2M: LinkScriptArc

Arcs to LinkScripts executed after this one

dependencyArcs

O2M: LinkScriptArc

Arcs to LinkScripts executed before this one

Arcs are stored in the LinkScriptArc entity (com.axelor.studio.db.LinkScriptArc) with a sequence, a name, a conditionScript, and a required toLinkScript target.

LinkScriptBinding (persistable="false") is a transient entity used by the test popup to hold each parameter / expression pair.

Backend Services

  • LinkScriptService.run(name, context) — Entry point that runs a LinkScript by name with a context map and returns a LinkScriptResult.

  • LinkScriptServiceImpl — Graph-traversal implementation that evaluates dependency arcs, the body, and output arcs in sequence order.

  • LinkScriptGroovyEvaluator — Evaluates the Groovy body and arc conditions, and analyzes the body to detect its dynamic variables.

  • LinkScriptController.setBindings() — Pre-fills the test popup bindings from the variables detected in the body.

  • LinkScriptController.run() — Runs the LinkScript from the test popup with the provided bindings.
