Expression Builder

Introduction

The Expression Builder is a visual tool for creating Groovy expressions that evaluate to a boolean result (true or false). It is used throughout the BPM modeler and Studio to define conditions for sequence flows, conditional events, view attributes, and action triggers.

The Expression Builder generates Groovy scripts from a visual rule-based interface, eliminating the need to write condition scripts manually.

Usage

General Presentation

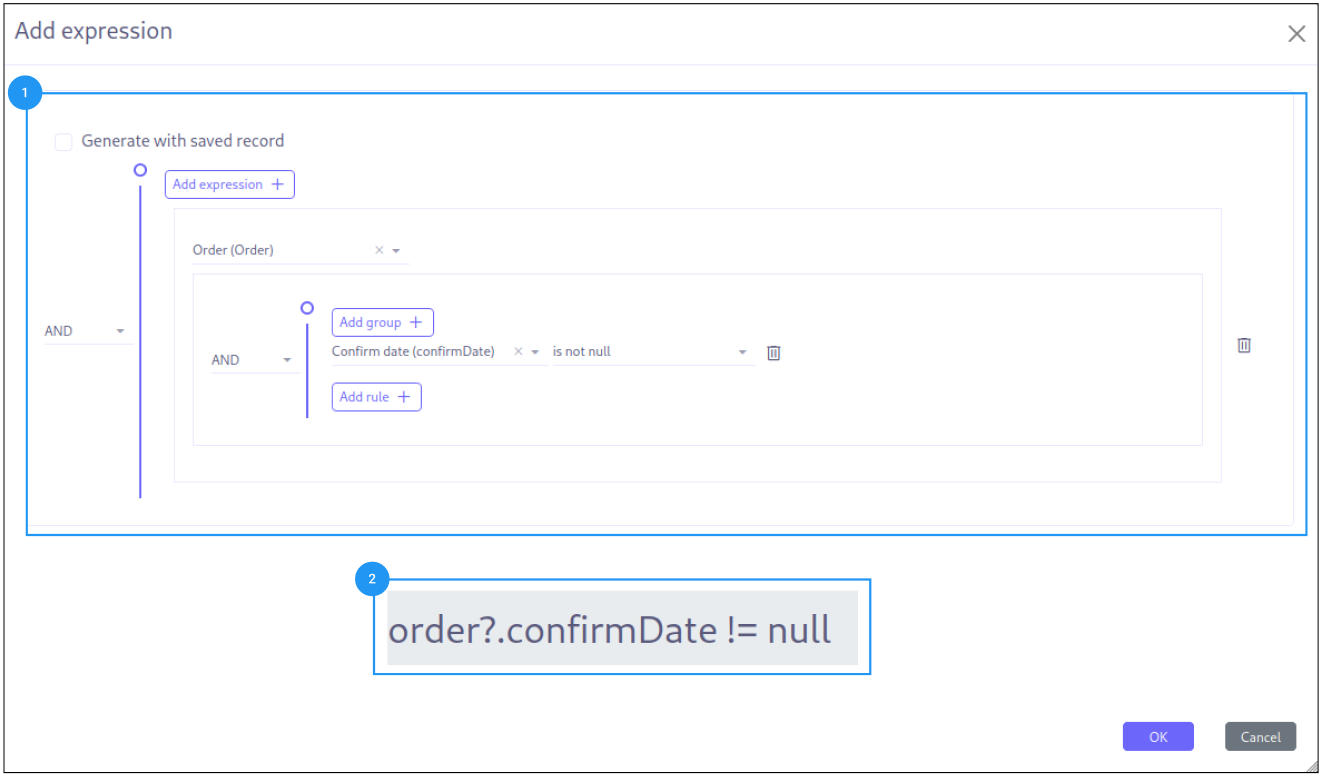

  1. Expression Builder Usage: Expression builder

    1. Condition (1): The visual condition editor where you define rules and rule groups.

    2. Boolean Return (2): The expected boolean result of the expression (true/false).

Details

Meta Model Selection

At the top of the Expression Builder, select the data model that provides the context for the expression. This determines which fields are available for building conditions.

  • Standard models: Select from the application’s MetaModel list

  • Custom models: Toggle to select from MetaJsonModel (custom/JSON models)

Rule Groups

Conditions are organized into rule groups. Each group contains one or more rules combined with a logical operator:

  • AND: All rules in the group must be true for the group to be true

  • OR: At least one rule in the group must be true for the group to be true

Rule groups can be nested to create complex conditions. Click + to add a new rule, or Add group to create a nested rule group.

Field Selection

Each rule starts with a field selector:

  • Select a field from the current model

  • For relational fields, navigate through the relationship chain using dot notation (e.g., customer.address.city)

  • The available operators update based on the selected field’s type

Operators

The Expression Builder supports 18 operators, each applicable to specific field types:

Operator Description Applicable Types

=

Equals

All types

!=

Not equal

All types

>

Greater than

Numeric, Date

>=

Greater or equal

Numeric, Date

<

Less than

Numeric, Date

<=

Less or equal

Numeric, Date

in

Value is in a set

Relational (M2M)

notIn

Value is not in a set

Relational (M2M)

between

Value is between two bounds

Numeric, Date

notBetween

Value is not between two bounds

Numeric, Date

isNull

Field is null

All types

isNotNull

Field is not null

All types

like

Contains (pattern match)

String, O2M

notLike

Does not contain

String, O2M

isTrue

Boolean is true

Boolean

isFalse

Boolean is false

Boolean

contains

Collection contains

M2M

notContains

Collection does not contain

M2M

Value From

The right side of each rule defines the comparison value. Three modes are available:

Mode Description

Self

Compare against another field from the same model. Useful for rules like deadline  creation date.

Context

Compare against a variable from the process/script context. Useful for rules like "status = processVariable".

None (static)

Compare against a typed static value. Enter a text, number, date, or select from a list.

Generated Expression

The builder generates a Groovy expression at the bottom of the panel. This expression is what gets stored and executed at runtime.

Example generated expression:

customer != null && customer.country?.code == "FR" && totalAmount > 1000

You can view the generated expression but cannot edit it directly from the Expression Builder. To manually edit expressions, use the script editor (pencil icon) instead of the builder.
If you manually edit an expression that was generated by the builder, the builder settings will be lost. The builder cannot re-parse manually modified expressions.

Generation Modes

The Expression Builder produces different output depending on the context:

Groovy Mode

Used for standard expression evaluation (gateway conditions, conditional events). Generates Groovy expressions with safe navigation:

record?.status == 'active' && (record?.amount > 1000 || record?.priority == 'high')

Key characteristics:

  • Uses ?. safe navigation operator to avoid NullPointerException

  • String values are quoted

  • Boolean operators: && (AND), || (OR)

BPM Query Mode

Used for BPM database queries. Generates JPQL-style expressions:

self.status = 'active' AND (self.amount > 1000 OR self.priority = 'high')

Key characteristics:

  • Uses . navigation (no safe navigation)

  • JPQL operators: =, IN, NOT IN, LIKE, MEMBER OF

  • Boolean operators: AND, OR

See Query Builder for more details on the BPM Query mode.

Additional Options

Single Result (BPM Query Only)

A Single result checkbox is available in BPM Query mode. When enabled, the generated query uses filterOne instead of filter, returning at most one result.

Generate with Saved Record (BPM Expression Only)

A Generate with saved record checkbox is available in BPM expression mode. When enabled, the generated expression references saved record IDs instead of transient objects.

Standalone vs Embedded Mode

The Expression Builder can be used in two ways:

  • Embedded: Opened as a dialog from the BPM modeler properties panel (conditional events, sequence flows, listeners)

  • Standalone: Opened as an HTML view with URL parameters for external integration

URL parameters for standalone mode:

Parameter Description

type

Builder type (query for query builder, otherwise expression builder)

id

Record ID for loading saved expressions

model

The target model for field selection

resultField

Field name to store the result expression

resultMetaField

Field name to store builder metadata (for reconstruction)

isCondition

Whether the builder is in condition mode

modelFilter

Field name filtering the model selector

withParam

Enable parameterized query support

queryModel

Model name for query mode

React Component Mode

The Expression Builder can also be imported as a React component with the following props:

  • onSave — Callback for saving the expression

  • exprVal — Initial expression value

  • defaultModel — Pre-selected model

  • isBPMN — Enable BPM mode features

  • isMapper — Used within the Mapper Builder

  • isBamlQuery — BAML query variant
