CRON Builder

Introduction

The CRON Builder (also called Timer Builder) is a visual tool for creating time-based expressions used in scheduled jobs and BPM timer events. It supports three expression formats: ISO 8601 durations, ISO 8601 repeating intervals, and CRON expressions.

The CRON Builder is accessible from the Job management menu as a standalone tool, and is also embedded in BPM timer event properties.

Standalone Mode

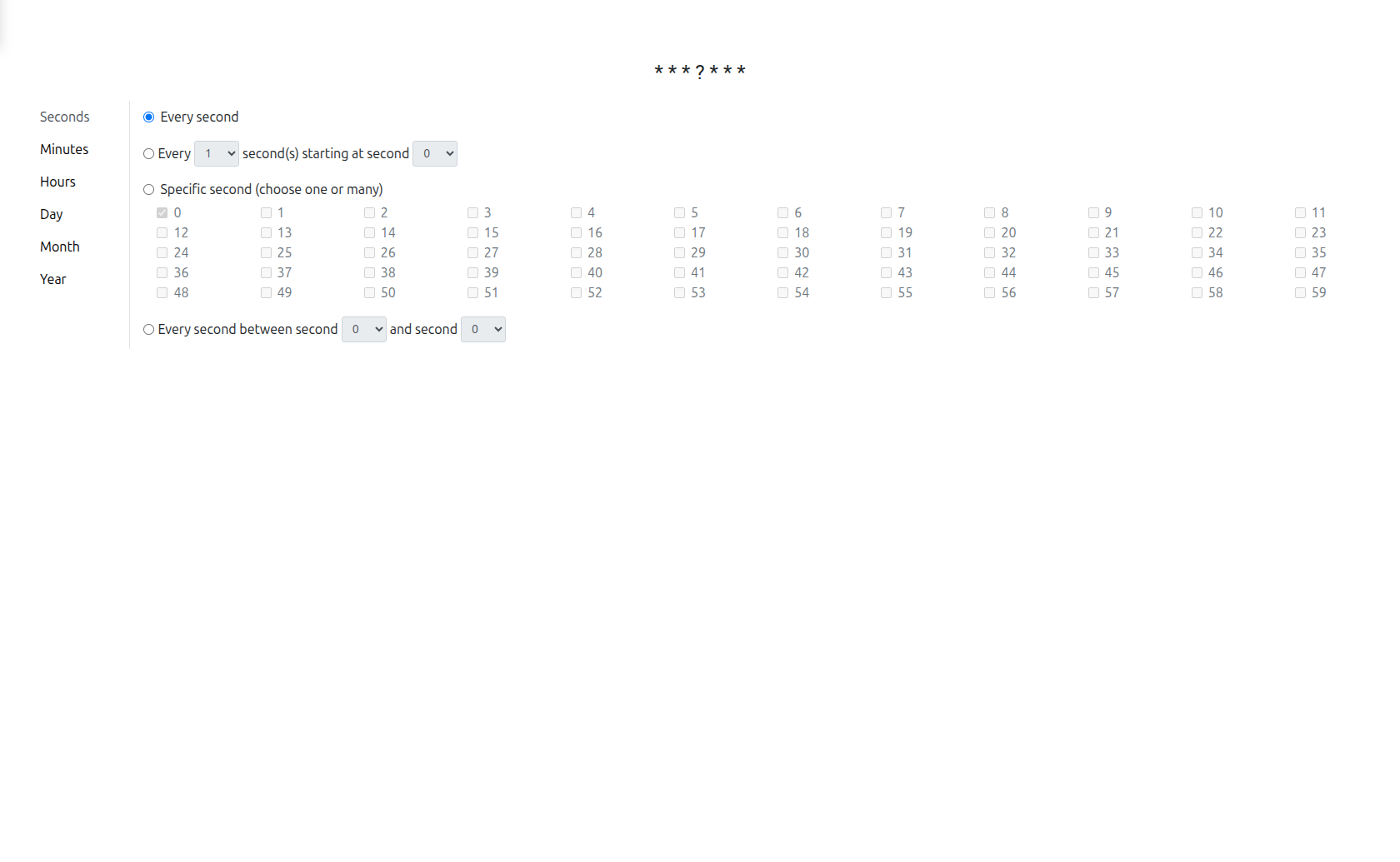

CRON Builder standalone

In standalone mode, the CRON Builder opens as a full-page HTML view where you can design and test time expressions.

Expression Types

The CRON Builder supports three expression types, presented as tabs:

ISO 8601 Duration

Creates a duration expression in ISO 8601 format (e.g., PT1H30M for 1 hour and 30 minutes).

The tile-based interface allows you to configure:

Component Description

Years

Number of years

Months

Number of months

Days

Number of days

Hours

Number of hours

Minutes

Number of minutes

Seconds

Number of seconds

Click on each tile to increment its value. The generated ISO 8601 expression is displayed at the bottom.

ISO 8601 Duration Fields

Field Designator Input Type

Years

Y

Integer

Months

M

Integer

Weeks

W

Integer

Days

D

Integer

Hours

H

Decimal (2 places)

Minutes

M

Decimal (2 places)

Seconds

S

Decimal (2 places)

Each tile supports:

  • Increment/decrement buttons

  • Mouse wheel scrolling

  • Long-press auto-repeat (500ms initial delay, then 75ms interval)

The generated expression follows the ISO8601 duration format:

P[nY][nM][nW][nD]T[nH][nM][nS]

Examples:

  • PT1H30M — 1 hour and 30 minutes

  • P2DT6H — 2 days and 6 hours

  • P1Y3M — 1 year and 3 months

ISO 8601 with Repeat

Extends the ISO 8601 duration with a repeat count, creating expressions like R3/PT1H (repeat 3 times, every 1 hour).

This mode adds a Repeat parameter to the duration configuration, allowing you to define how many times the timer should trigger at the specified interval.

When the tab includes repeat support (timer definition types iso and timeCycle):

  • Repeat count — Number of times to repeat the duration. Use -1 for infinite repetition. The R prefix is added to the expression.

  • Start datetime — ISO8601 datetime after which the first cycle starts.

Full format with repeat:

R[n]/[startDateTime]/P[duration]

Examples:

  • R3/PT1H — Repeat 3 times, every hour

  • R/2024-01-15T09:00:00/P1D — Repeat infinitely, every day starting January 15, 2024 at 9:00 AM

  • R-1/PT30M — Repeat infinitely, every 30 minutes

CRON Expression

CRON Expression builder

Creates a CRON expression using a visual builder powered by the @sbzen/re-cron library. This provides a user-friendly interface for configuring:

  • Seconds: Specific seconds, interval, or range

  • Minutes: Specific minutes, interval, or range

  • Hours: Specific hours, interval, or range

  • Day: Day of month or day of week patterns

  • Month: Specific months or interval

  • Year: Specific year or range

The Timer Builder uses the 7-field Quartz CRON format, which includes Seconds and Year fields. This differs from the standard Unix CRON format (5 fields).

CRON Fields

Position Field Range

1

Seconds

0-59

2

Minutes

0-59

3

Hours

0-23

4

Day of Month

1-31

5

Month

1-12

6

Day of Week

1-7 (SUN-SAT)

7

Year

1970-2099

The initial expression is * * * ? * * * (every second).

CRON Visual Editor

The visual editor provides per-field configuration tabs:

  • Every — Fire at every interval (e.g., every 5 minutes)

  • Specific — Fire at specific values (e.g., on Monday and Friday)

  • Between — Fire between a range (e.g., from 9 to 17)

  • Start at — Fire at a starting value with an interval

The editor supports advanced Quartz features:

  • Last day of month (L)

  • Last weekday of month (LW)

  • Nearest weekday (W)

  • Nth weekday of month (#, e.g., 2#3 = 3rd Monday)

  • Aliases (e.g., MON, JAN)

CRON Examples

Expression Description

0 0 12 ? * MON *

Every Monday at noon

0 */15 * ? * * *

Every 15 minutes

0 0 8-17 ? * MON-FRI *

Every hour from 8 AM to 5 PM, Monday to Friday

0 0 0 1 * ? *

First day of every month at midnight

The generated CRON expression is validated in real-time using the cron-validate library.

The editor provides a copy-to-clipboard button for the generated expression.

Use CRON expressions for complex scheduling patterns (e.g., "every weekday at 8:00 AM" or "first Monday of each month at noon"). Use ISO 8601 durations for simple fixed intervals (e.g., "every 30 minutes").

BPM Integration

The CRON Builder is embedded in the BPM modeler’s properties panel for timer events. When configuring a timer event, the builder appears as a dialog.

The available tabs depend on the timer definition type:

Timer Definition Type Available Tabs

Time Duration

ISO 8601 Duration only

ISO

ISO 8601 with Repeat

CRON

CRON Expression only

Time Cycle

ISO 8601 with Repeat + CRON Expression

The generated expression is stored in the timer event’s definition and used by the Camunda process engine to schedule timer triggers.

Expression Auto-Detection

When loading an existing expression, the Timer Builder automatically detects its format:

  1. Try CRON validation (cron-validate) — If valid, switch to CRON tab

  2. Try ISO8601 parsing (iso8601-duration) — If parseable, switch to ISO8601 tab

  3. Otherwise — Show error (unknown format)

For timeCycle type, if the existing expression is a valid CRON, the second tab (CRON) is pre-selected.

Localization

The CRON visual editor supports localization. The user’s language is automatically detected from the /ws/app/info endpoint and applied to the CRON builder labels.

Technical Details

The CRON Builder is a React component located in react/timer-builder/src/.

Key dependencies:

  • @sbzen/re-cron — CRON expression visual builder

  • iso8601-duration — ISO 8601 duration parsing and formatting

  • cron-validate — CRON expression validation

  • @axelor/ui — Axelor UI components

The component supports two modes:

  • Standalone: Rendered as an HTML view accessible from the menu

  • Dialog: Rendered as a modal dialog within the BPM timer event properties

  • Timer Events — BPM timer events that use CRON expressions
