WS Builder

Introduction

The WS Builder is a visual editor for designing and testing web service workflows. It provides a diagram-based interface where you can create and connect WS Requests, Connectors, and Authenticators visually.

Access

Navigate to App > WS Studio to open the WS Builder.

The editor opens as a React application in a dedicated view.

Editor Layout

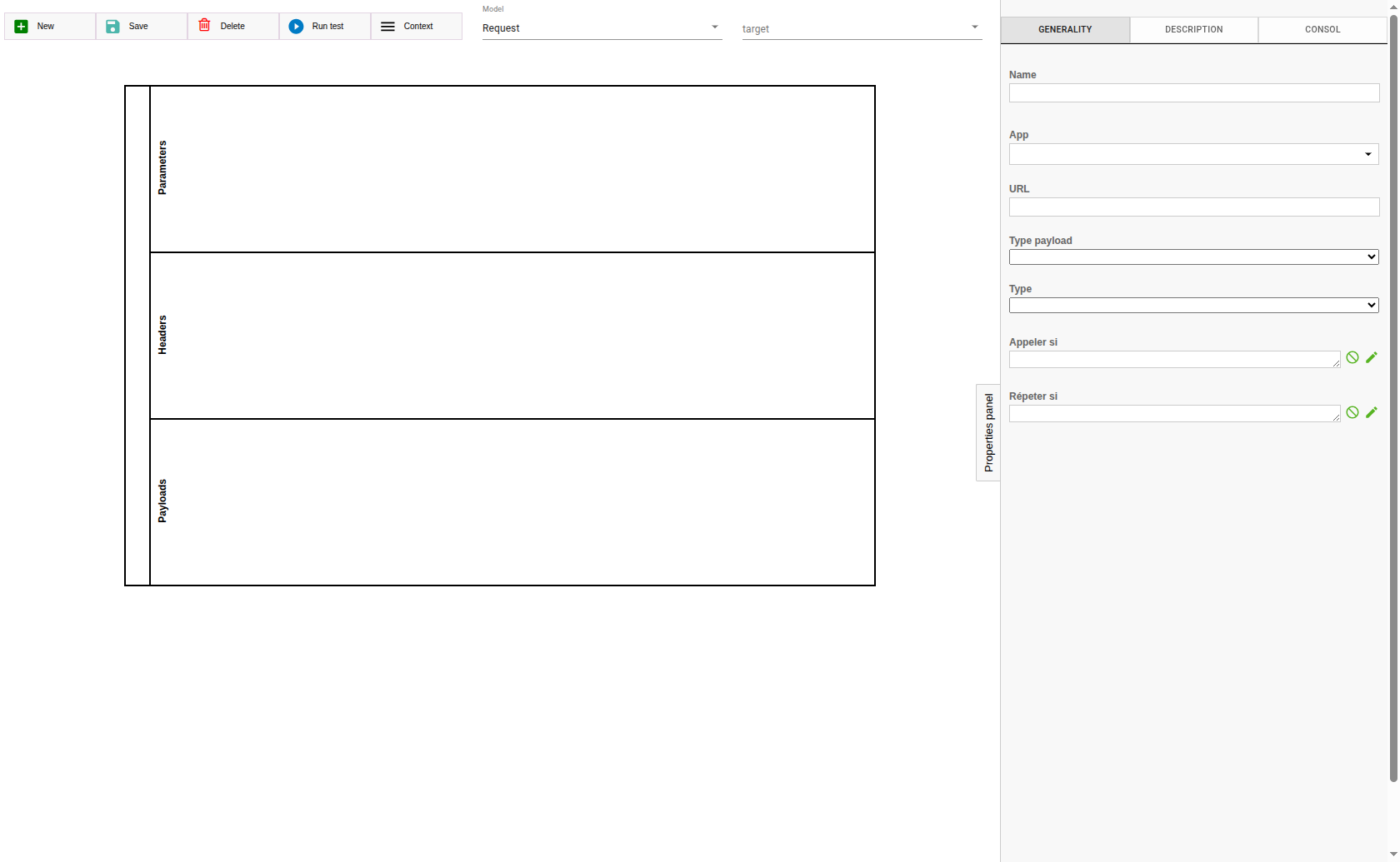

WS Builder interface

The WS Builder interface is divided into the following areas:

  • Toolbar (1): Left sidebar with action buttons (Save, Delete, Add, Test, Menu)

  • Canvas (2): Central diagram area where WS components are arranged as visual nodes

  • Properties Panel (3): Right-side drawer showing the configuration of the selected node

Toolbar Actions

The left sidebar provides the following actions:

Button Icon Description

Save

Save

Saves the current state of the selected component.

Delete

Delete

Deletes the currently selected component.

Add

Add Box

Creates a new component (request, authenticator, or connector) and adds it to the canvas.

Test

Play

Opens the test dialog to execute a connector and view results.

Menu

Menu

Provides additional navigation options.

Node Types

The canvas supports three types of visual nodes:

Request Nodes

Represent WS Requests. When selected, the properties panel shows the request configuration with tabs for URL, headers, payload, and conditions.

Authenticator Nodes

Represent WS Authenticators. When selected, the properties panel shows authentication configuration with auth type, credentials, and request references.

Connector Nodes

Represent WS Connectors. When selected, the properties panel shows connector configuration with base URL, request list, context, and default authenticator.

Properties Panel

The properties panel on the right side changes based on the selected node type. It uses specialized sub-tools for configuring different aspects of a component.

Request Builder

Configure request parameters with a model-based editor. Select fields from data models to build request parameters visually.

Payload Builder

Build request payloads using a visual key-value pair editor. Supports:

  • Nested structures (hierarchical key-value pairs)

  • Model-based field selection

  • Field editor for complex value expressions

Header Builder

Configure HTTP headers with predefined selections for common header names and MIME types.

Expression Builder

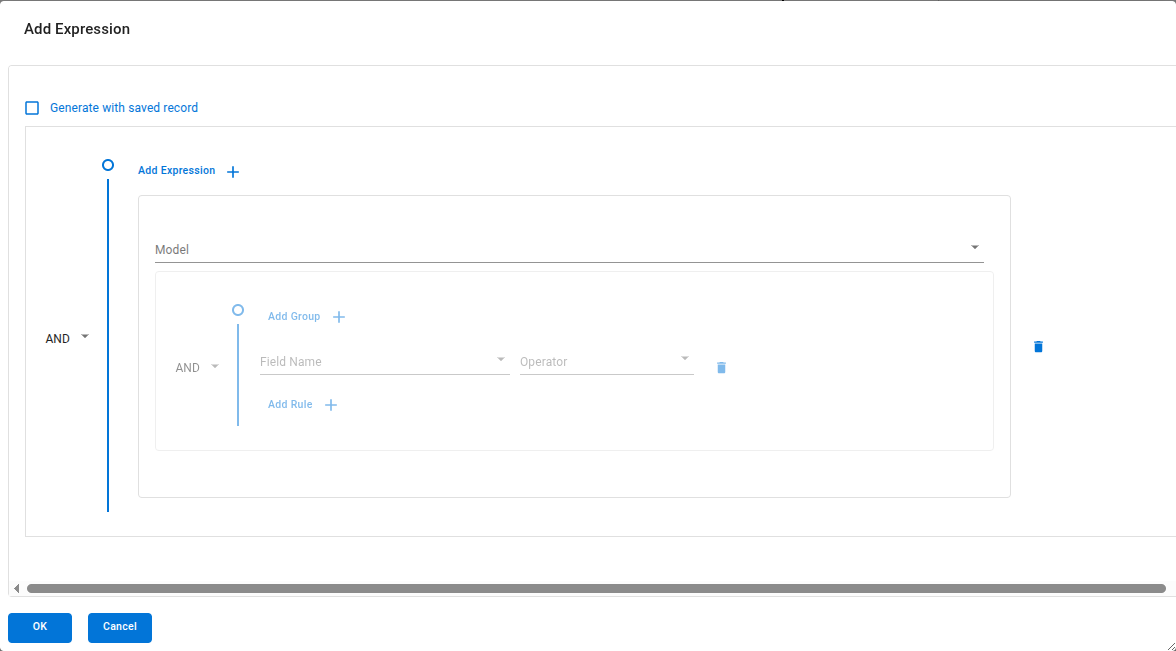

Expression builder

Build Groovy expressions with an interactive editor that provides:

  • Auto-complete for field references

  • Date/time pickers

  • Number inputs

  • Select dropdowns

Used for callIf, repeatIf, and other expression fields.

Context Builder

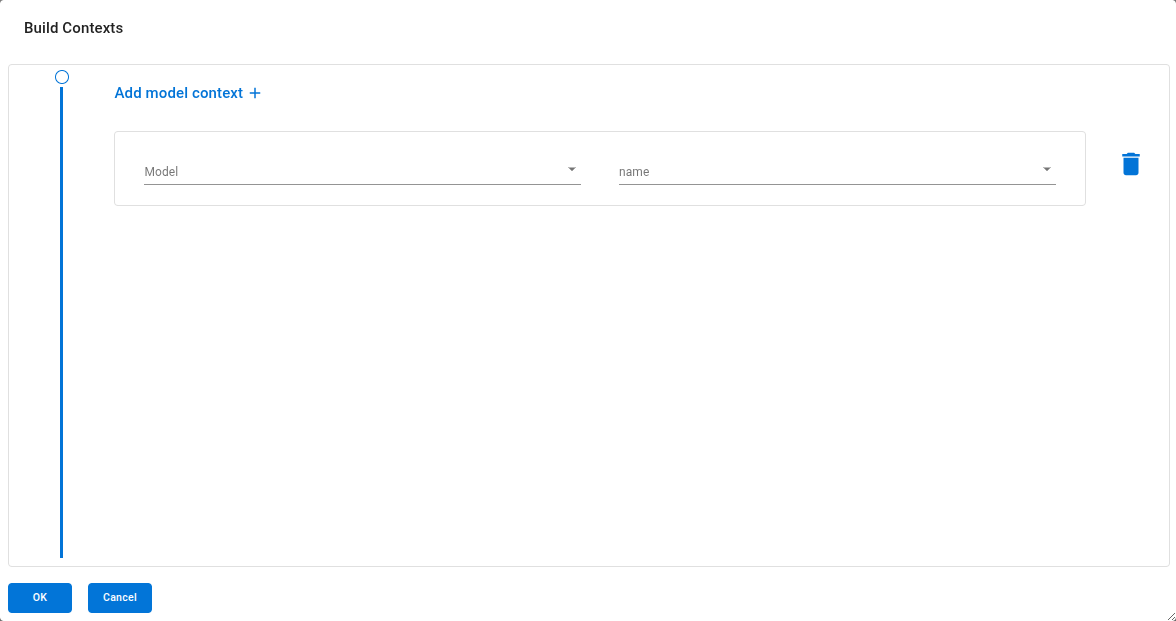

Context builder

Define context mappings for connectors. Map model fields to context variables using a visual model-to-field selector with filter conditions.

Transformation Builder

Select and configure Transformations for data processing:

  1. Select a Library from the available transformation libraries

  2. Select an Operation (transformation) from the library

  3. Configure parameter values for the transformation

Testing Connectors

The WS Builder provides a built-in testing feature:

  1. Click the Test button (play icon) in the toolbar

  2. Select the connector to test

  3. Select the authenticator to use

  4. Click Execute

  5. The result is displayed in a JSON viewer

This allows you to test web service integrations directly from the visual editor without switching to the standard form views.

Use the testing feature during development to validate each step of your connector workflow.
