Query Builder

Introduction

The Query builder is a tool that allows generating queries (Groovy-based expressions) which return either a single result or a list of results based on defined conditions. This allows filtering and extracting specific data from the database.

Usage

General presentation

Voici les grandes lignes de ce que fait le query builder :

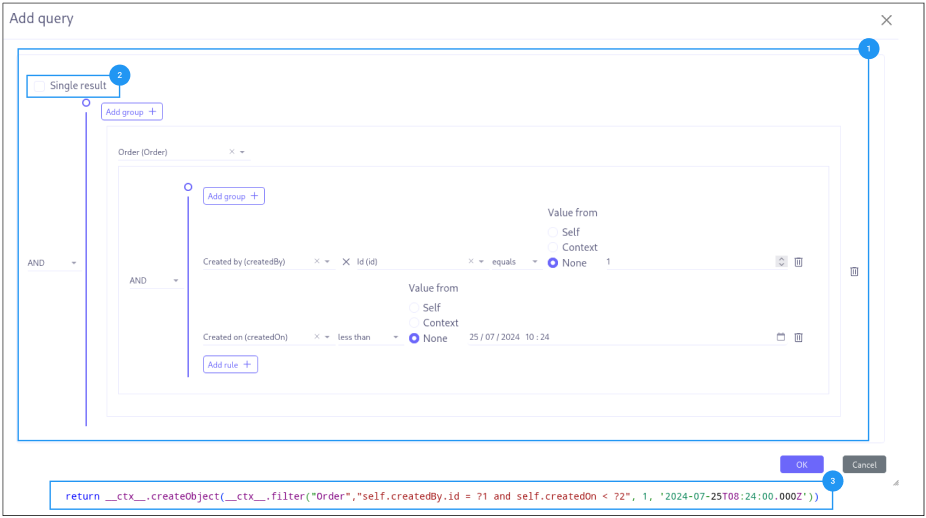

Query builder

  1. Condition: Data filtering criteria. (1)

  2. Unique Result: Option to return a single record. (2)

  3. Results: Groovy based generated expression. (3)

Details

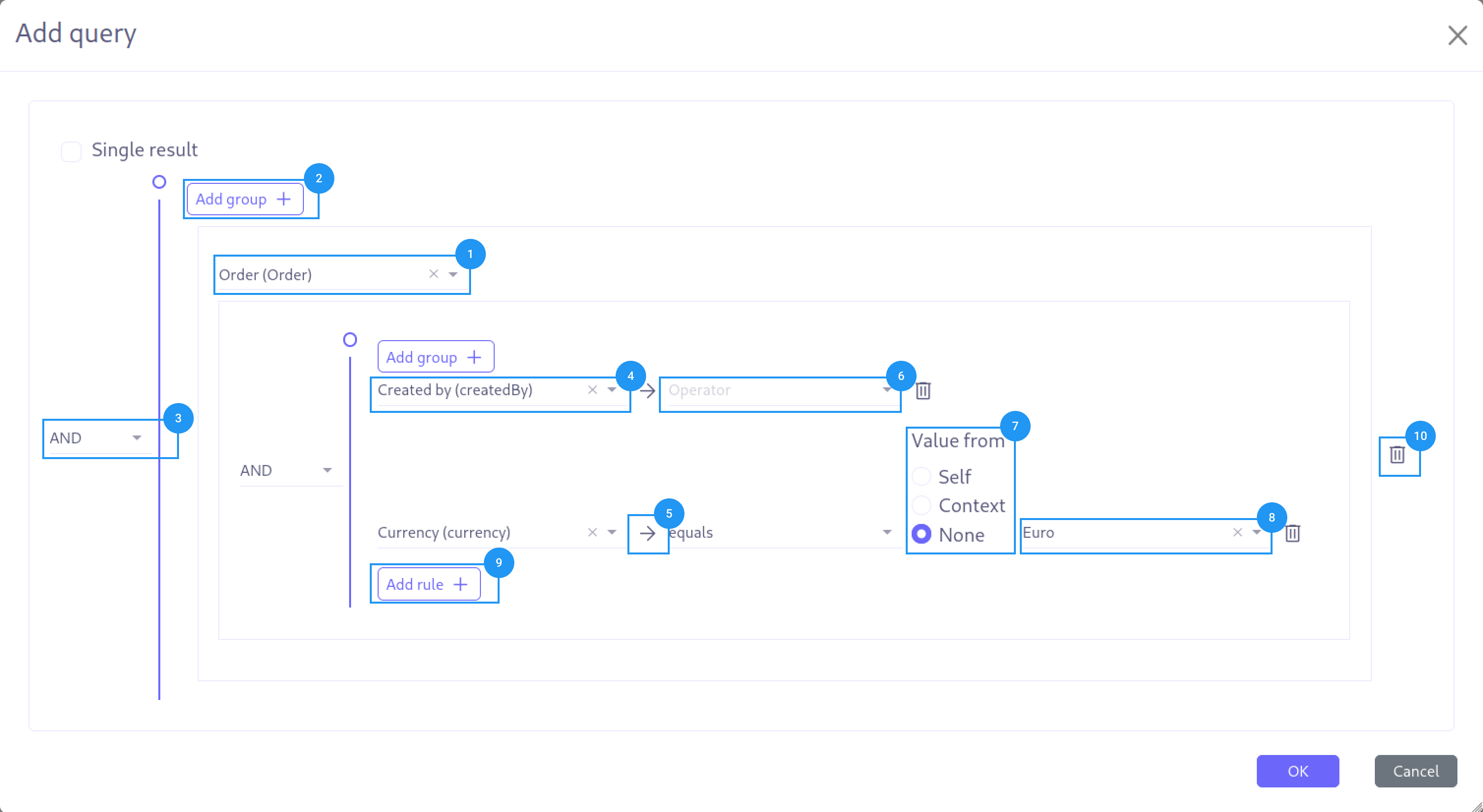

Query builder detail

  1. Application table containing the data to be returned. (1)

  2. Adding a new group of conditions. (2)

  3. Choice of logical operators, OR or AND. (3)

  4. Selection of the left member on which a condition is applied. (4)

  5. If the left member is a relational field of type m2o or o2o, it is possible to access its fields. (5)

  6. Selection of the comparison operator. (6)

  7. Selection of the origin of the right member. (7)

  8. Selection of the right member. (8)

  9. Adding a new condition. (9)

  10. Deleting the element (block, rule group). (10)

Value from explanations

The following cases are distinguished:

self: This is a comparison with one of the fields of the designated object (1).

context: This is a comparison with a value from the context, either variables or another model of the application.

none: This is a comparison with a fixed value.

Differences from Expression Builder

While the Query Builder shares the same interface as the Expression Builder, it differs in several ways:

Aspect Expression Builder Query Builder

Output format

Groovy expression

JPQL-style query

Operators

Groovy operators (==, !=, &&)

JPQL operators (=, IN, AND)

Navigation

Safe navigation (?.)

Standard navigation (.)

Model binding

Any model via selector

Fixed via queryModel parameter (read-only selector)

Parameterized values

Not supported

Supports ?1, ?2 or :param1, :param2 placeholders

Single result

Not applicable

Optional filterOne for single-record queries

Multiple groups

Single expression

Multiple expression groups joined by top-level combinator

Generated Output

The Query Builder generates code that uses the Axelor context helper to execute queries:

__ctx__.createObject(__ctx__.filter("com.example.Model",
    "self.status = ?1 AND self.amount > ?2", 'active', 1000))

This wraps the JPQL query in:

  • ctx.filter(model, query, params…​) — Executes the query and returns matching records

  • ctx.createObject(…​) — Wraps the result in a context-aware object

Single Result

When the Single result checkbox is enabled:

__ctx__.createObject(__ctx__.filterOne("com.example.Model",
    "self.status = ?1", 'active'))

The filterOne method returns at most one record instead of a collection.

Parameterized Queries

The Query Builder supports parameterized queries for safe value binding. Parameter placeholders are automatically generated based on the rules:

  • Positional: ?1, ?2, ?3

  • Named: :param1, :param2, :param3

Values are passed as separate arguments to the filter method, preventing SQL injection and ensuring proper type handling.

BAML Query Variant

When used within BAML (isBamlQuery=true), the Query Builder generates a simplified output without the ctx.createObject(…​) wrapper:

"self.status = ?1 AND self.amount > ?2", 'active', 1000

This format is consumed directly by the BAML query engine.

Package-Level Queries

When the queryModel parameter contains (e.g., com.axelor.apps.base.db.), the Query Builder enters package mode. In this mode:

  • The field selector shows only fields common to all entities in the specified package

  • Fields are fetched via the QueryBuilderController.getCommonFields() endpoint

  • This allows building queries that apply to any entity in a package

Package-level query support depends on the axelor-tool module being present in your application.

URL Parameters

The Query Builder is activated by setting type=query in the generic-builder URL:

Parameter Description

type

Must be set to query to activate Query Builder mode

queryModel

The model to query. The model selector becomes read-only when this is set.

withParam

When set, enables parameterized query support

id

Record ID to load existing query

model

Entity class storing the query configuration

resultField

Field storing the generated query

resultMetaField

Field storing the JSON metadata
