Actions

Overview

Studio Actions allow you to define business logic that can be triggered from menus, buttons, or field events. Axelor Studio supports five action types, each designed for a specific use case: creating records, updating data, running scripts, opening views, and sending emails.

Actions are managed from App > Studio components > Actions.

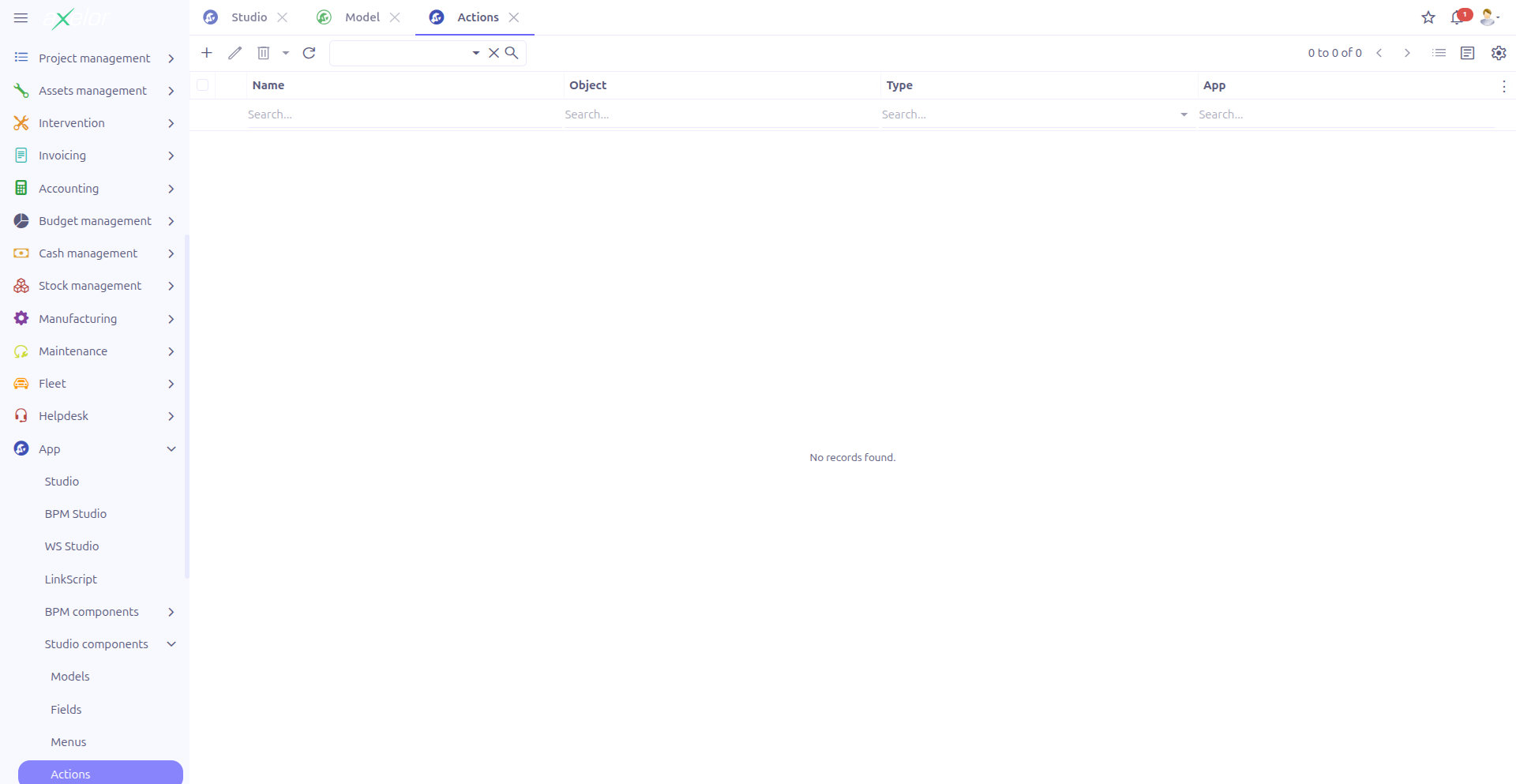

Studio Actions grid view

The Actions list filters out menu-bound actions by default (self.menuAction = false). Actions that are part of a menu’s action binding are managed from the Menus form.

Creating an Action

Navigate to App > Studio components > Actions and click New.

Studio Action form

Common Fields

Field Required Description

Name (1)

Yes

Technical name of the action.

Type (2)

Yes

Action type: Create, Update, Script, View, or Email. See sections below.

Is JSON (3)

No

Toggle between custom (JSON) models and standard models for the target.

Model (4)

Conditional

The data model this action operates on. Required for Create, Update, and Script types. Uses a ref-text widget.

XML ID (5)

No

Unique XML identifier for import/export.

Studio App (6)

No

Associates the action with a Studio App.

The form dynamically shows different fields based on the selected Type.

Action Types

Create (Type 0)

Creates a new record in a specified model with pre-filled field values.

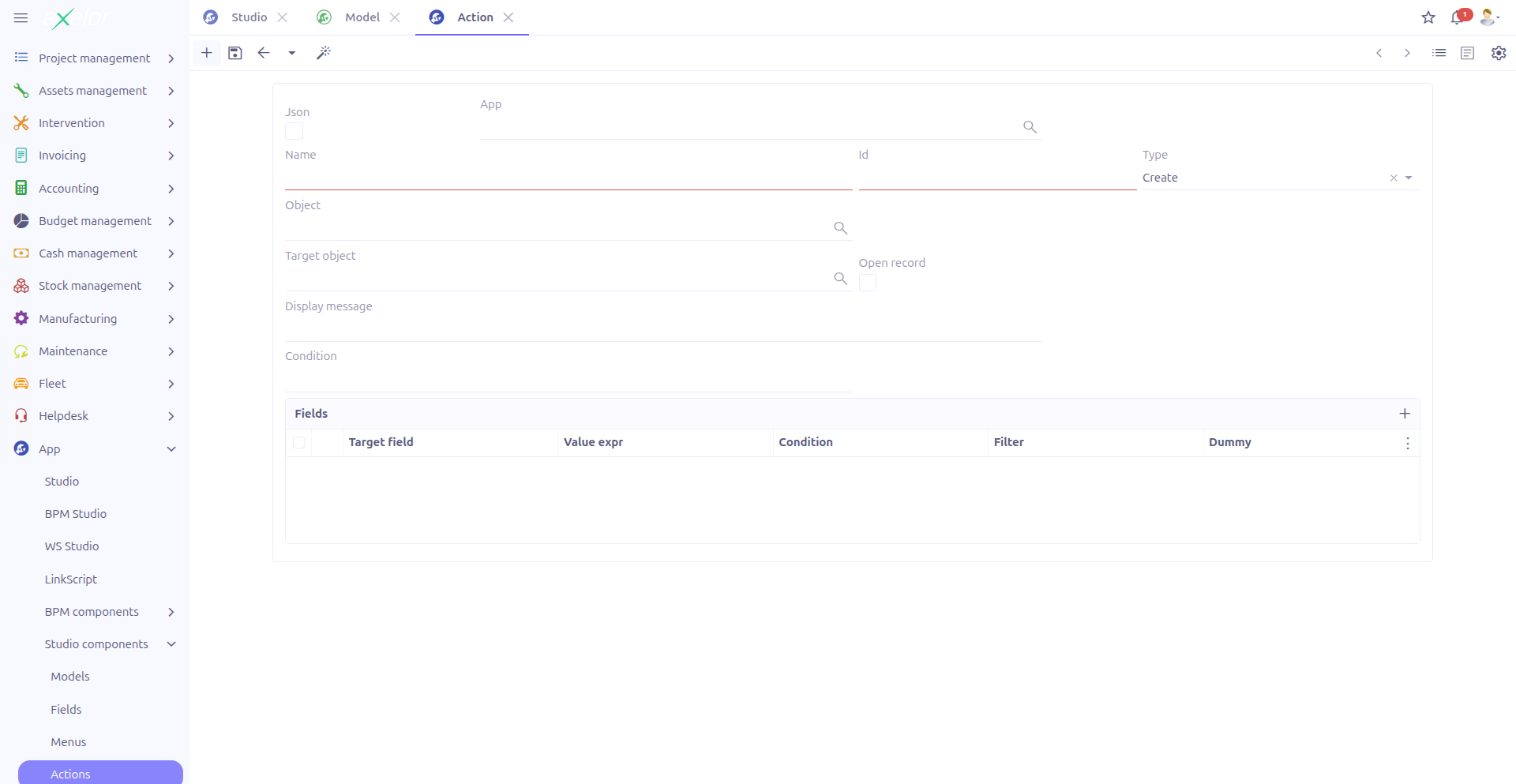

Create action configuration
Field Description

Target model

The model in which the new record will be created.

Open record

When checked, the newly created record is opened in a form view after creation.

Display message

An optional message displayed to the user after the record is created.

Condition

A Groovy expression that must be true for the action to execute.

Lines

Field value assignments. Each line maps a target field to a value (static, field reference, or expression).

Action Lines

Each action line defines a field assignment:

  • Target field: The field in the target model to populate (MetaField or MetaJsonField)

  • Value: Static value, field reference from the source model, or a Groovy expression

  • Condition: Optional condition for this specific line

  • Sub-lines: Nested assignments for relational fields

Update (Type 1)

Updates existing records in a model based on conditions.

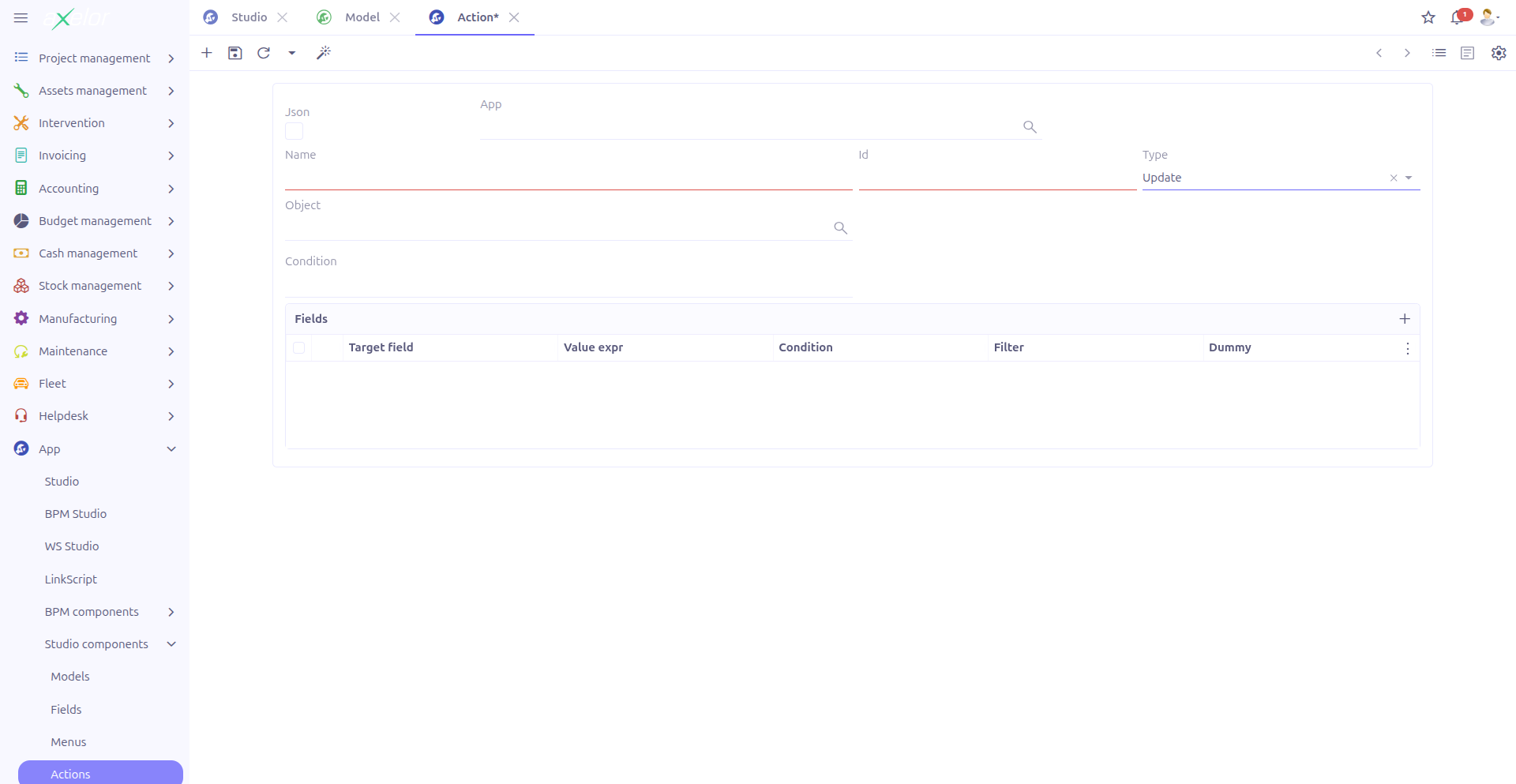

Update action configuration
Field Description

Model

The model whose records will be updated.

Condition

A Groovy expression that determines which records are affected.

Lines

Field value assignments, same structure as Create action lines.
Update actions without a condition will affect all records of the specified model. Always define a condition to limit the scope of updates.

Script (Type 2)

Executes a custom Groovy script for advanced business logic.

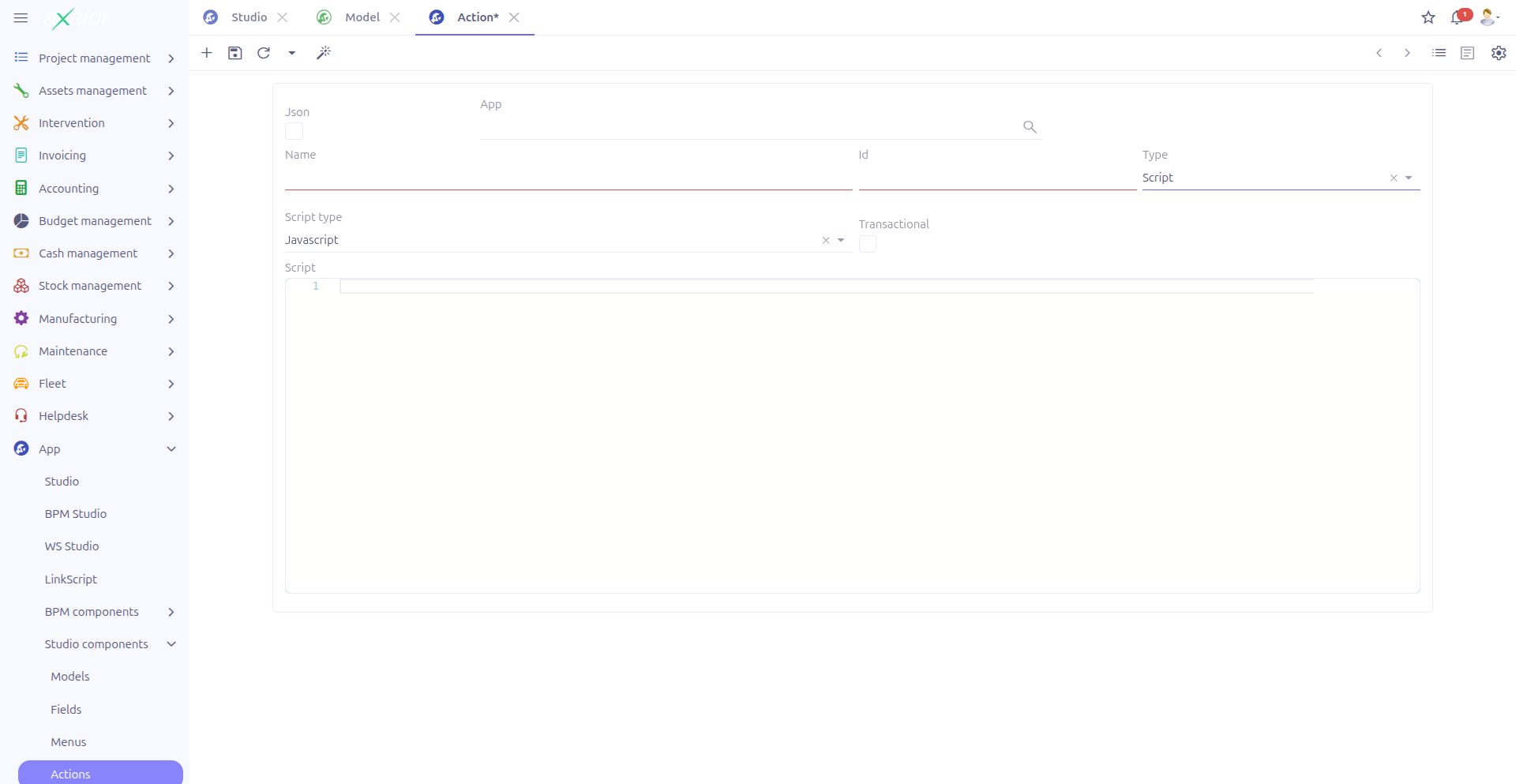

Script action configuration
Field Description

Script type

The scripting language: Javascript (0) or Groovy (1).

Transactional

When checked, the script runs within a database transaction. If the script fails, all changes are rolled back.

Script text

The Groovy script code, edited using a CodeEditor widget with syntax highlighting.

Use the Script type for complex business logic that cannot be expressed with simple Create or Update actions. Examples include: conditional calculations, multi-step data transformations, or integration with external services.

Example Groovy script:

// Calculate total amount from order lines
def total = 0
record.orderLines?.each { line ->
    total += (line.quantity ?: 0) * (line.unitPrice ?: 0)
}
$response.setValue("totalAmount", total)

View (Type 3)

Opens a specific view with optional context parameters and domain filtering.

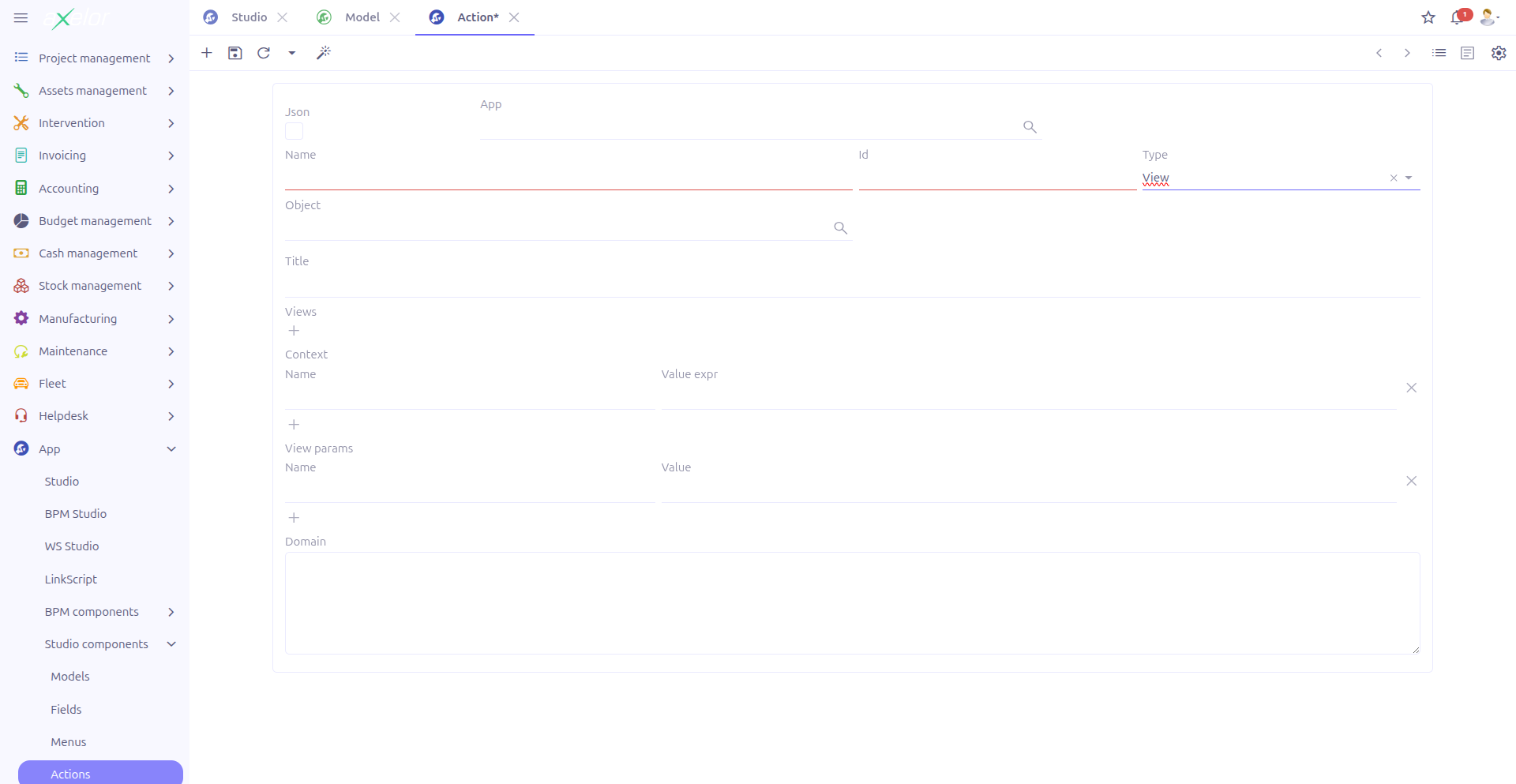

View action configuration
Field Description

Title

The title displayed in the view’s header/tab.

Views (studioActionViews)

List of view definitions (viewType + viewName) with sequence ordering. Defines which views are available (grid, form, etc.).

Context lines (viewParams)

Key-value pairs passed as context parameters to the opened view.

Domain condition

A JPQL-like expression to filter the records displayed in the view.

Each view entry in the Views list specifies:

  • View type: The type of view (grid, form, cards, etc.)

  • View name: The technical name of the view to display

  • Sequence: Order of preference (lower = higher priority)

  • Condition: Optional condition for this view entry

Email (Type 4)

Sends an email based on a predefined email template.

Email action configuration
Field Description

Send option

Controls when the email is sent: Send directly (0) — sends immediately without user intervention, or Edit before send (1) — opens the email editor so the user can review and modify the email before sending.

Email template

Reference to a Template record that defines the email content, subject, recipients, etc. The template list is filtered to show only templates matching the selected model.

Email templates are managed separately in the application’s messaging configuration. The action only references an existing template.

Custom Actions

In addition to Studio Actions, there is a Custom actions entry under App > Configuration > Custom actions. Custom Actions provide direct access to the low-level MetaAction records of the Axelor platform. Unlike Studio Actions which offer a guided interface for five specific action types, Custom Actions allow you to write raw XML action definitions with full control over the action behavior.

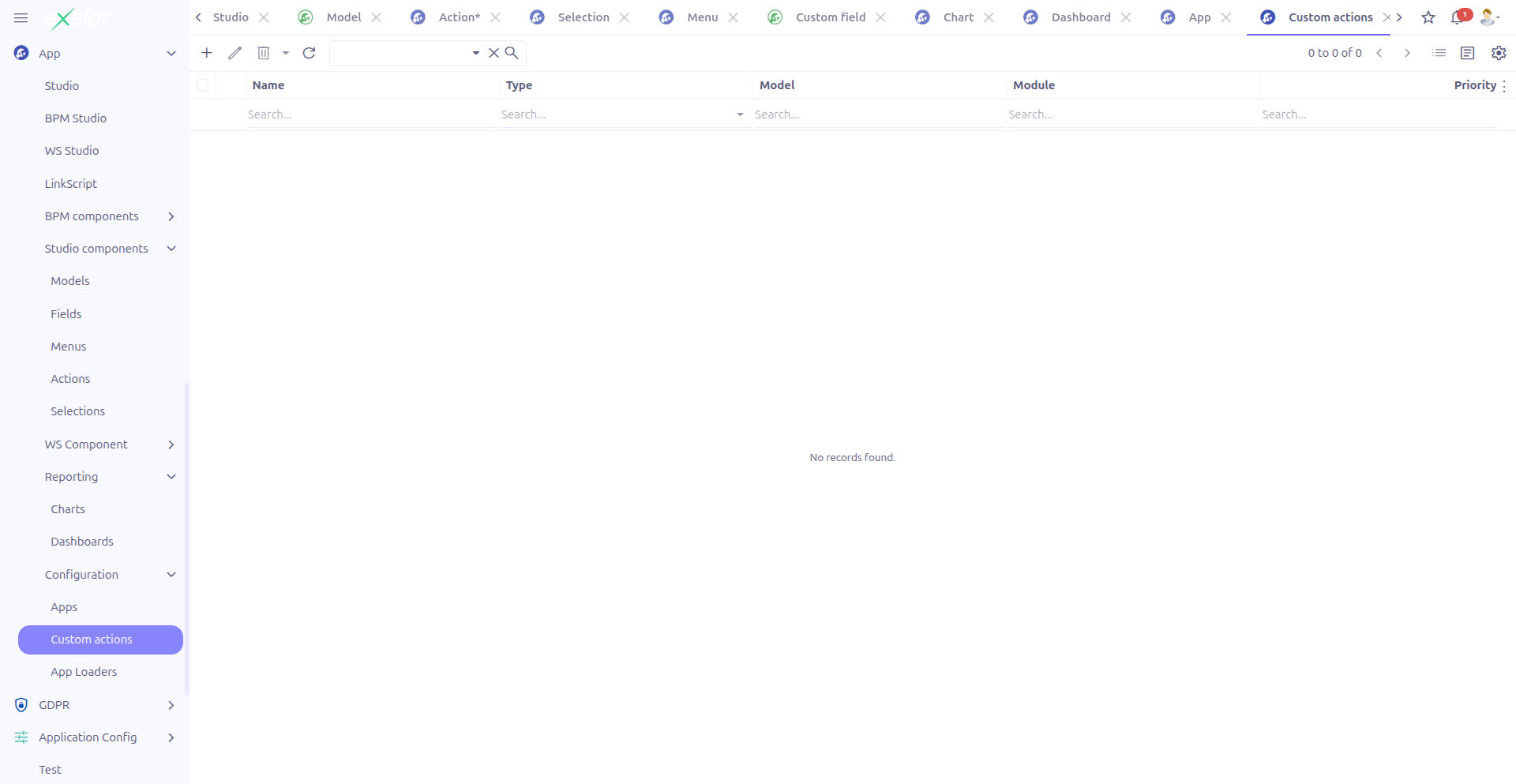

Custom Actions grid view

Custom Actions require knowledge of the Axelor framework’s action XML format. Use Studio Actions for most use cases, and reserve Custom Actions for advanced scenarios that cannot be handled by the five standard action types (Create, Update, Script, View, Email).

Accessing Custom Actions

The Custom Actions menu is available under App > Configuration > Custom actions. The list is pre-filtered to show only records where isCustom = true, which means only actions created through Studio are displayed (not actions defined in application source code).

Creating a Custom Action

Click New to create a new custom action.

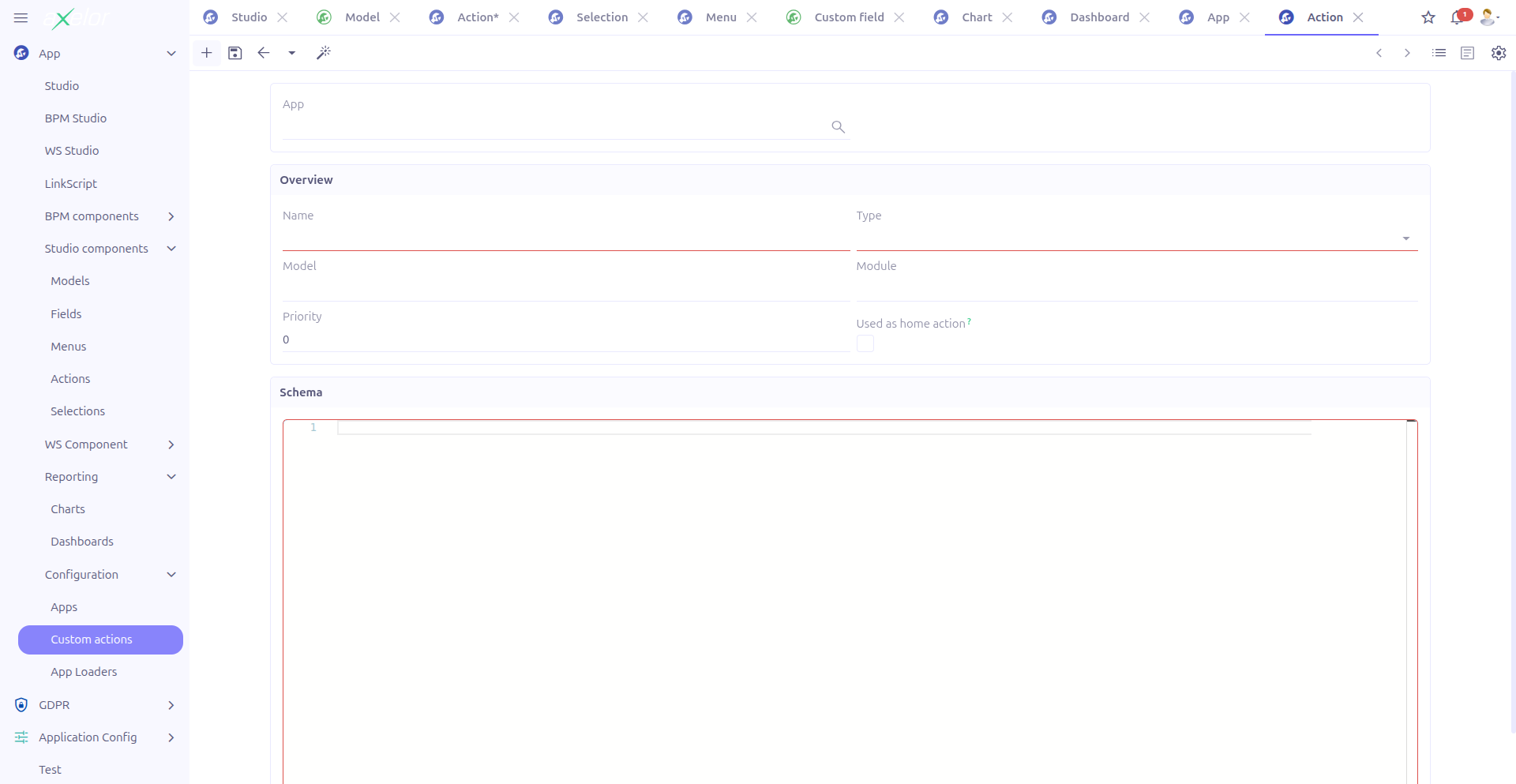

Custom Action form

Form Fields

The form extends the standard MetaAction form with Studio-specific fields:

Field Required Description

Name

Yes

Technical name of the action. Must follow the Axelor naming convention (e.g., action-custom-my-action).

Type

Yes

The action type (action-record, action-method, action-validate, action-condition, action-view, action-attrs, action-group, etc.).

Model

No

The data model this action applies to (full class name).

Module

No

The module this action belongs to.

Priority

No

Numeric priority for action ordering when multiple actions with the same name exist. Lower values have higher priority.

XML

Yes

The raw XML action definition. This is the complete action XML element that will be registered in the application.

Studio App

No

Associates the action with a Studio App for packaging.

Studio App Panel

The Studio App field is displayed in a dedicated panel at the top of the form. This panel is only visible when:

  • The enableStudioApp option is active (see Configuration)

  • The form is opened from the Studio context (_fromStudio = true)

When creating a new Custom Action from the Studio menu, the isCustom flag is automatically set to true.

Grid Views

Two grid variants exist depending on the enableStudioApp configuration:

  • With Studio App enabled (studio-meta-action-grid): Displays columns for name, type, model, module, priority, and studioApp (grouped by studioApp).

  • Without Studio App (studio-meta-action-disable-appbuild-grid): Same columns but without the studioApp column or grouping.

Example: Custom Action-Validate

<action-validate name="action-custom-validate-amount">
  <error message="Amount must be positive"
         if="amount != null &amp;&amp; amount &lt;= 0" />
  <alert message="Amount exceeds budget limit. Continue?"
         if="amount > 10000" />
</action-validate>

Custom Actions Technical Details

Custom Actions extend the MetaAction entity (com.axelor.meta.db) with the following fields added by Studio:

Field Type Description

sequence

Integer

Ordering sequence for the action

studioApp

M2O: StudioApp

Studio App grouping (conditional visibility)

isCustom

Boolean

Marks the action as Studio-created (used for filtering)

Technical Details

Studio actions are stored in the StudioAction entity with the following type constants:

Constant Value

TYPE_SELECT_CREATE

0

TYPE_SELECT_UPDATE

1

TYPE_SELECT_SCRIPT

2

TYPE_SELECT_VIEW

3

TYPE_SELECT_EMAIL

4

Key relationships:

  • StudioAction → StudioActionLine (O2M): Field assignments for Create/Update types

  • StudioAction → StudioActionView (O2M): View definitions for View type

  • StudioAction → Filter (O2M): Filter conditions

  • StudioAction → Template (M2O): Email template reference

When a Studio Action is saved, the corresponding XML action is generated and registered in the application’s action registry.
