Link Scripts

Introduction

Link Scripts are reusable Groovy script blocks that can be chained together through dependency and output arcs. They provide a way to build modular, composable business logic where each script receives input from its dependencies and passes results to its outputs.

Link Scripts are accessed from App > LinkScript.

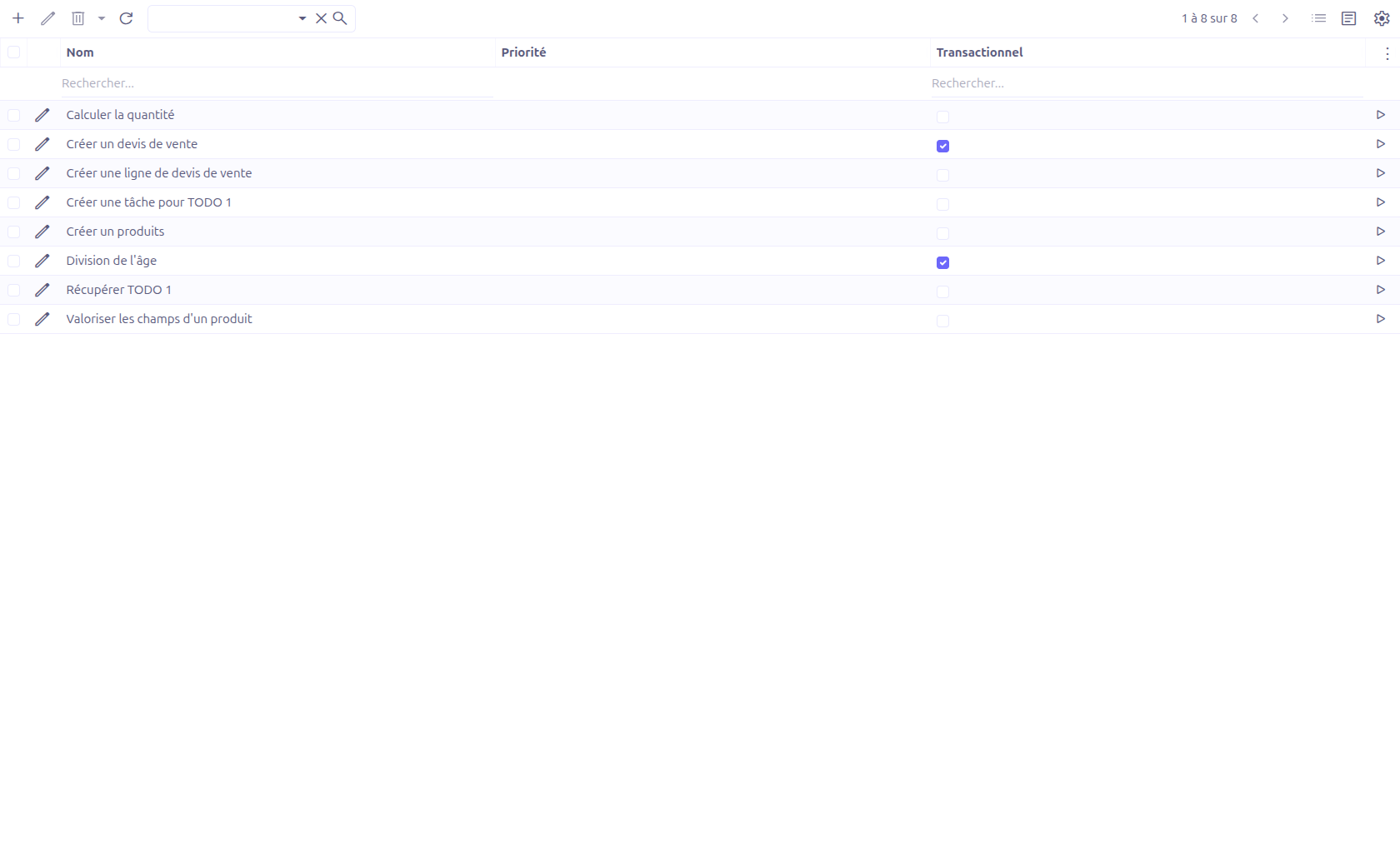

Link Scripts grid view

The grid view displays all Link Scripts with a Test button (play icon) for quick execution testing.

Click New to create a Link Script.

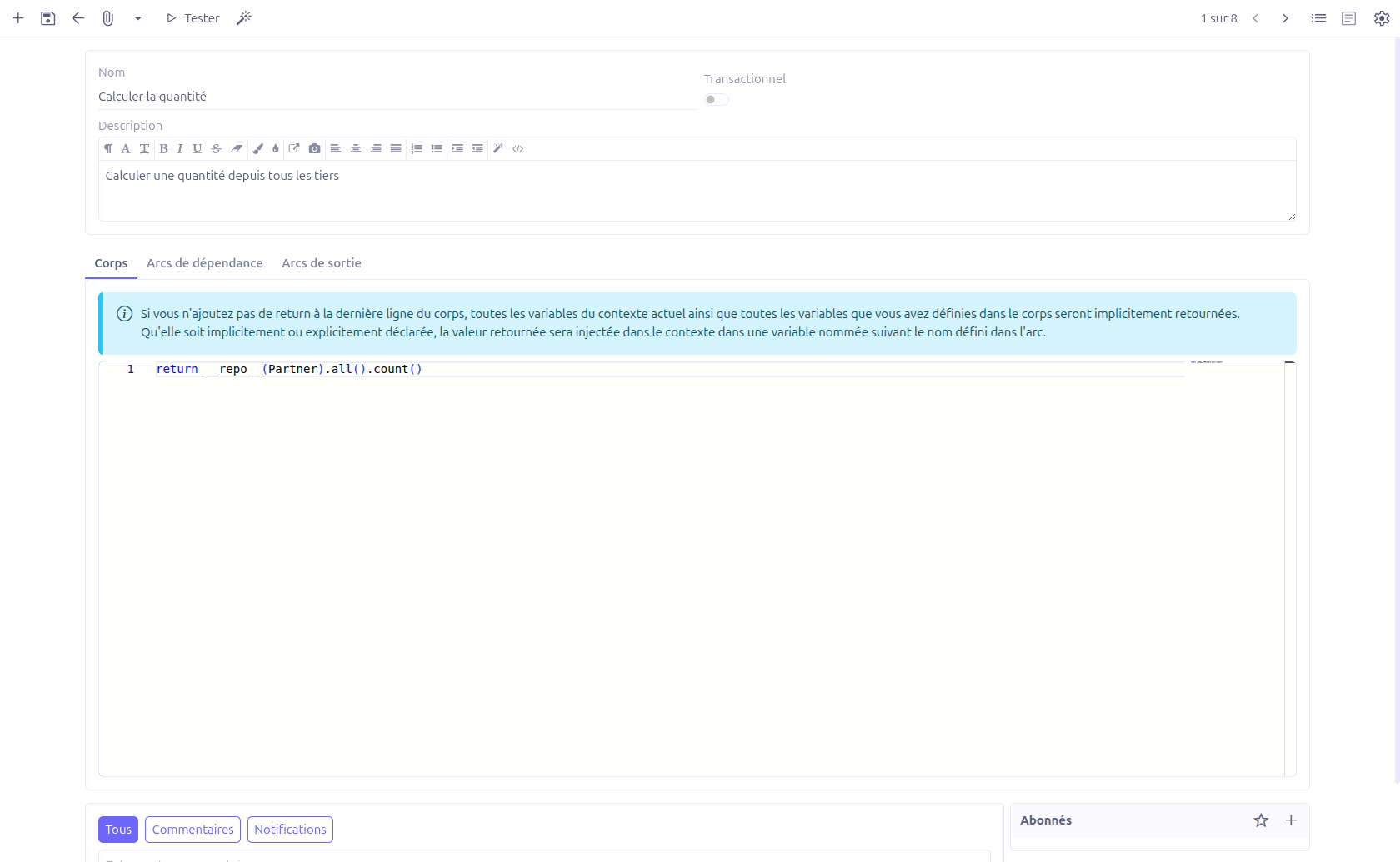

Link Script form

Basic Information

Field Required Description

Name (1)

Yes

Unique name for the Link Script.

Transactional (2)

No

Boolean switch (default: false). When enabled, the script runs within a database transaction. If the script fails, all changes are rolled back.

Description (3)

No

Description of the script’s purpose (HTML editor).

Script Body

The Body tab contains the Groovy script code.

Link Script body editor

The body is edited using a CodeEditor widget with Java syntax highlighting (height: 500px).

Implicit return behavior: If the script does not contain an explicit return statement, all variables defined in the script are implicitly returned and injected into the context for downstream output arcs.

Example script body:

def orders = __repo__(SaleOrder).all()
    .filter("self.statusSelect = ?1", 3)
    .fetch()

def totalAmount = orders.sum { it.exTaxTotal ?: 0 }
def orderCount = orders.size()

// These variables are implicitly returned
// and available to output arcs

Dependency Arcs

The Dependency Arcs tab defines inputs from other Link Scripts.

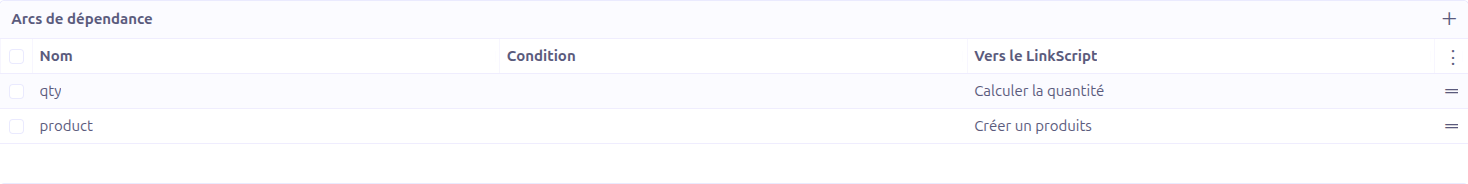

Dependency arcs

Each dependency arc specifies:

Field Required Description

Name

No

Variable name under which the dependency result is injected into this script’s context. Must follow camelCase naming: /^[a-z][a-zA-Z0-9]*$/.

Condition script

No

A Groovy expression that determines whether this dependency is resolved. If the condition is false, the dependency is skipped.

To LinkScript

Yes

Reference to the source Link Script that provides the dependency data.

Output Arcs

The Output Arcs tab defines downstream Link Scripts that receive this script’s results.

Output arcs follow the same structure as dependency arcs, connecting this script’s output to other scripts' inputs.

The Test button (play icon) in the toolbar opens a test dialog.

Link Script test popup

Test Bindings

The test dialog allows you to define input bindings — parameter/expression pairs that simulate dependency inputs:

Field Description

Parameter

The variable name to inject into the script context.

Expression

The value for the parameter. Can be a static string value or a Groovy expression.

Expressions are evaluated as Groovy expressions if they start with eval:. Otherwise, the expression is treated as a plain string value.

Examples:

  • Hello World — Injected as the string "Hello World"

  • eval: 42 + 8 — Evaluated as Groovy, resulting in the integer 50

  • eval: repo(Partner).find(1L) — Evaluated as Groovy, returning a Partner record

Click Test to execute the Link Script with the defined bindings. The script runs and its output is displayed.

Arc Naming Convention

Arc names must follow this pattern: /^[a-z][a-zA-Z0-9]*$/

  • Must start with a lowercase letter

  • Can contain only letters and digits

  • camelCase is recommended (e.g., orderTotal, customerList, validatedItems)

Arc names that do not follow this pattern are rejected by the validation.

Technical Details

LinkScript Entity

Field Type Description

name

String (required, unique)

Script name

transactional

Boolean (default: false)

Transaction mode

description

Large String

HTML description

body

Large String (required)

Groovy script code

outputArcs

O2M: LinkScriptArc

Output connections

dependencyArcs

O2M: LinkScriptArc

Input dependencies

LinkScriptArc Entity

Field Type Description

sequence

Integer (readonly)

Execution order

name

String

Variable name for result injection

conditionScript

Large String

Conditional execution expression

toLinkScript

M2O: LinkScript (required)

Target/source script

LinkScriptBinding (Non-persistent)

Used only in the test popup:

Field Type Description

parameter

String

Variable name

expression

Large String

Value or Groovy expression (with eval: prefix)

Backend services:

  • LinkScriptController.setBindings() — Pre-fills test bindings from dependency arcs

  • LinkScriptController.run() — Executes the script in test mode
